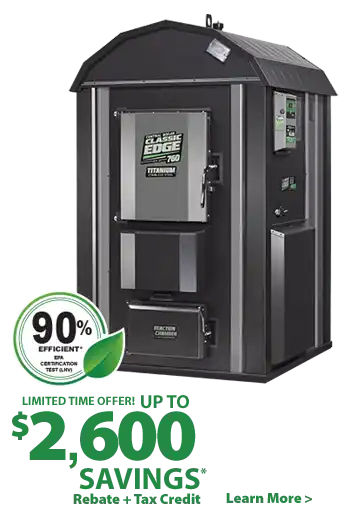

Central Boiler 760 HDX

Contact us for price

Stock status: Call Store for Availability

Call Us Now

Specs

Classic Edge 760 Titanium HDX

Overall Efficiency (LHV) – 89.8%*
Overall Efficiency (HHV) – 83.4%*

Manufacturer’s Rated Heat Output Capacity** – 245,000 Btu/hr

Heat Output (12 hr) – 146,686 Btu/hr

The Classic Edge 760 HDX is EPA Step 2 Certified.

COMPARE ALL CLASSIC EDGE HDX MODELS

Firebox Volume – 23 cu ft

Firebox Dimensions – 37″ L x 44″ H x 26″ W

Door – 21″ W x 25″ H

Ash Cleanout Door – 19″ W x 11″ H

Water Capacity – 330 gal.

Weight – 2,036 lbs

Supply/Return Ports – 1 set of 1-1/4″ supply and return ports, 2 sets of 3/4″ supply and return ports

Integrated Wi-Fi Connectivity – Standard

Bypass Door and Alarm – Standard

Measurements and Foundation Dimensions – Illustration

Included with outdoor furnace – Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections

NOTE: Specifications are subject to change without notice.

*Efficiencies are determined under the same test conditions using higher heating value, lower heating value and overall efficiency. **Based on EPA qualifying test.
