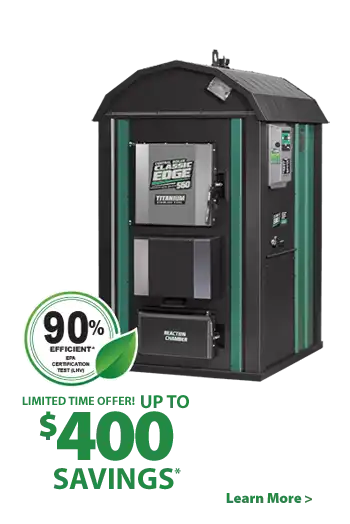

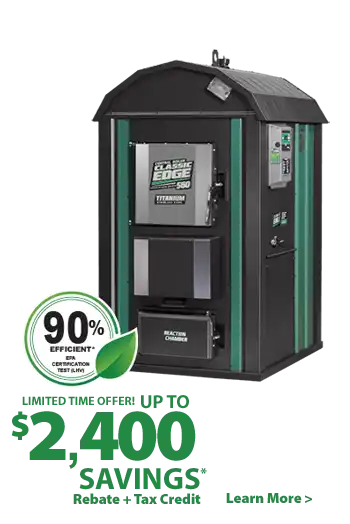

Classic Edge 560 Titanium HDX
Overall Efficiency (LHV) – 90.2%*
Overall Efficiency (HHV) – 83.8%*
Manufacturer’s Rated Heat Output Capacity** – 200,000 Btu/hr
Heat Output (12 hr) – 92,417 Btu/hr
The Classic Edge 560 HDX is EPA Step 2 Certified.
Firebox Volume – 14 cu ft
Firebox Dimensions – 33″L x 32″H x 23″W
Door – 18“W x 18″H
Ash Cleanout Door – 18″W x 9″H
Water Capacity – 205 gal.
Weight – 1,668 lbs
Supply/Return Ports – 1 set of 1-1/4″ supply and return ports (can be configured for two pumps)
Integrated Wi-Fi Connectivity – Standard
Bypass Door and Alarm – Standard
Measurements and Foundation Dimensions – Illustration
Included with outdoor furnace – Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections
NOTE: Specifications are subject to change without notice.
* Efficiencies are determined under the same test conditions using higher heating value, lower heating value and overall efficiency. **Based on EPA qualifying test.
