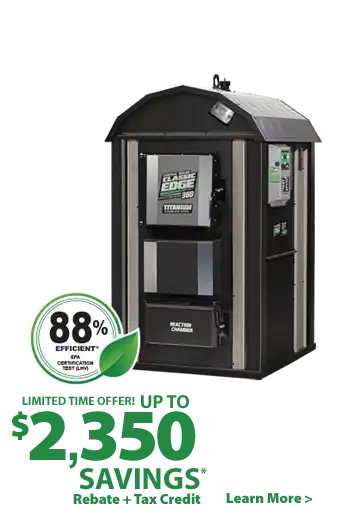

Central Boiler 360 HDX

Contact us for price

Stock status: Call Store for Availability

Call Us Now


Classic Edge 360 Titanium HDX

Overall Efficiency (LHV) – 88.4%*
Overall Efficiency (HHV) – 82.2%*

Manufacturer’s Rated Heat Output Capacity** – 150,000 Btu/hr

Heat Output (12 hr) – 66,894 Btu/hr

The Classic Edge 360 HDX is EPA Step 2 Certified.


Firebox Volume – 10 cu ft

Firebox Dimensions – 28″L x 29″H x 21″W

Door – 16“W x 16″H

Ash Cleanout Door – 18″W x 9″H

Water Capacity – 150 gal.

Weight – 1,365 lbs

Supply/Return Ports – 1 set of 1-1/4″ supply and return ports (can be configured for two pumps)

Integrated Wi-Fi Connectivity – Standard

Measurements and Foundation Dimensions – Illustration

Included with outdoor furnace – Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections

NOTE: Specifications are subject to change without notice.

* Efficiencies are determined under the same test conditions using higher heating value, lower heating value and overall efficiency. **Based on EPA qualifying test.
