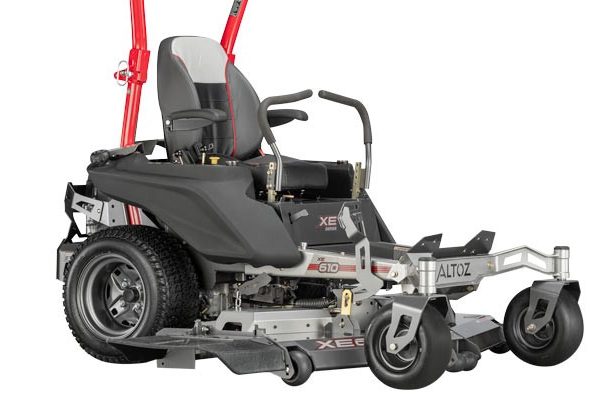

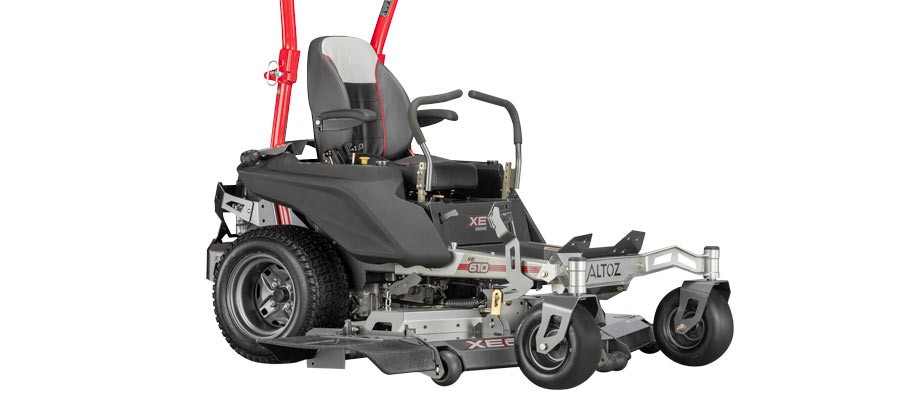

Altoz XE Series

Contact us for price

Stock status: Call Store for Availability

The Altoz XE combines superior precision, enhanced maneuverability, and unmatched durability into a low impact, compact, and rugged mower. This is commercial grade performance at an unmatched value.

Call Us Now

Specs

XE 540

Engine

  • Horsepower : 24
  • Manufacturer : Kawasaki
  • Model : FS
  • Displacement (cc) : 726
  • Cylinders : 2
  • Air Filter : Dual Element
  • Fuel : Gasoline
  • Fuel Vol (gal) : 10

Drive Line

  • Trans Type : Hydrostatic
  • Trans Manufacturer : Hydro-Gear
  • Trans Model : ZT-3200
  • Max Forward Speed : 9 mph
  • Front Tire Size : 13″
  • Rear Tire Size : 22″

Features

  • Armrests
  • Seat Suspension
  • Seat Adjust Fore and Aft
  • Cup Holder
  • Fuel Gauge
  • Digital Hour Meter
  • ROPS Folding

Dimension / Weight

  • Length : 84.5″
  • Width (Chute Up) : 55″
  • Height (ROPS Up) : 74″
  • Weight : 930 lbs

Cutting Deck

  • Cutting Width : 54″
  • Deck Type : Fabricated Steel
  • Deck Thickness : Laminated 10 and 10 Gauge
  • Deck Depth : 4.5″
  • Cut Height (Min – Max) : 1.5″ – 4.25″
  • Cutting Height Steps : 1/4″ Increments
  • Number of Blades : 3
  • Blade Speed : 18,500 fpm
  • Anti-Scalp Wheels : 4 Recessed
  • Deck Lifting System : Foot Pedal
  • Clutch Torque : 125 ft-lbs
  • Clutch Mfr : Warner

Warranty

  • Homeowner / Commercial : 3 year/600 hour – first 12 months no hour limitation
  • Rental : N/A

XE 610

Engine

  • Horsepower : 24
  • Manufacturer : Kawasaki
  • Model : FS
  • Displacement (cc) : 726
  • Cylinders : 2
  • Air Filter : Dual Element
  • Fuel : Gasoline
  • Fuel Vol (gal) : 10

Drive Line

  • Trans Type : Hydrostatic
  • Trans Manufacturer : Hydro-Gear
  • Trans Model : ZT-3200
  • Max Forward Speed : 9 mph
  • Front Tire Size : 13″
  • Rear Tire Size : 22″

Features

  • Armrests
  • Seat Suspension
  • Seat Adjust Fore and Aft
  • Cup Holder
  • Fuel Gauge
  • Digital Hour Meter
  • ROPS Folding

Dimension / Weight

  • Length : 87″
  • Width (Chute Up) : 62″
  • Height (ROPS Up) : 74″
  • Weight : 960 lbs

Cutting Deck

  • Cutting Width : 61″
  • Deck Type : Fabricated Steel
  • Deck Thickness : Laminated 10 and 10 Gauge
  • Deck Depth : 4.5″
  • Cut Height (Min – Max) : 1.5″ – 4.25″
  • Cutting Height Steps : 1/4″ Increments
  • Number of Blades : 3
  • Blade Speed : 18,500 fpm
  • Anti-Scalp Wheels : 4 Recessed
  • Deck Lifting System : Foot Pedal
  • Clutch Torque : 125 ft-lbs
  • Clutch Mfr : Warner

Warranty

  • Homeowner / Commercial : 3 year/600 hour – first 12 months no hour limitation
  • Rental : N/A

XE 610 SS

Engine

  • Horsepower : 24
  • Manufacturer : Kawasaki
  • Model : FS
  • Displacement (cc) : 726
  • Cylinders : 2
  • Air Filter : Dual Element
  • Fuel : Gasoline
  • Fuel Vol (gal) : 10

Drive Line

  • Trans Type : Hydrostatic
  • Trans Manufacturer : Hydro-Gear
  • Trans Model : ZT-3200
  • Max Forward Speed : 9 mph
  • Front Tire Size : 13″
  • Rear Tire Size : 22″

Features

  • Armrests
  • Seat Suspension
  • Seat Adjust Fore and Aft
  • Cup Holder
  • Fuel Gauge
  • Digital Hour Meter
  • ROPS Folding

Dimension / Weight

  • Length : 87″
  • Width (Chute Up) : 62″
  • Height (ROPS Up) : 74″
  • Weight : 970 lbs

Cutting Deck

  • Cutting Width : 61″
  • Deck Type : Fabricated Steel
  • Deck Thickness : Laminated 10 and 10 Gauge
  • Deck Depth : 4.5″
  • Cut Height (Min – Max) : 1.5″ – 4.25″
  • Cutting Height Steps : 1/4″ Increments
  • Number of Blades : 3
  • Blade Speed : 18,500 fpm
  • Anti-Scalp Wheels : 4 Recessed
  • Deck Lifting System : Foot Pedal
  • Clutch Torque : 125 ft-lbs
  • Clutch Mfr : Warner

Warranty

  • Homeowner / Commercial : 3 year/600 hour – first 12 months no hour limitation
  • Rental : N/A
