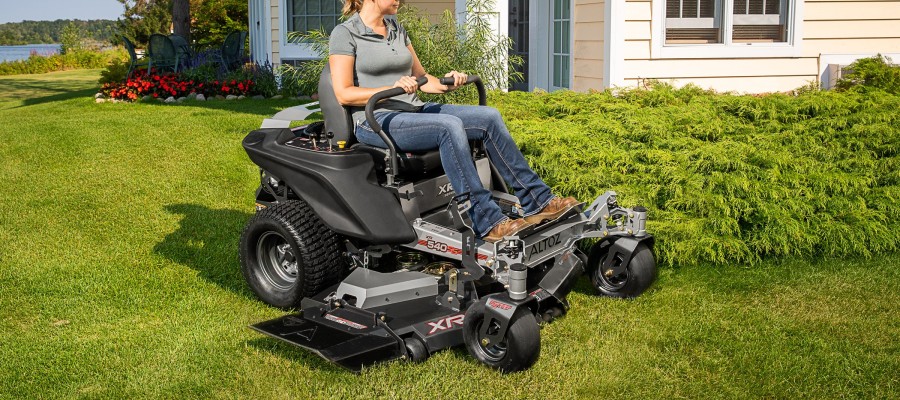

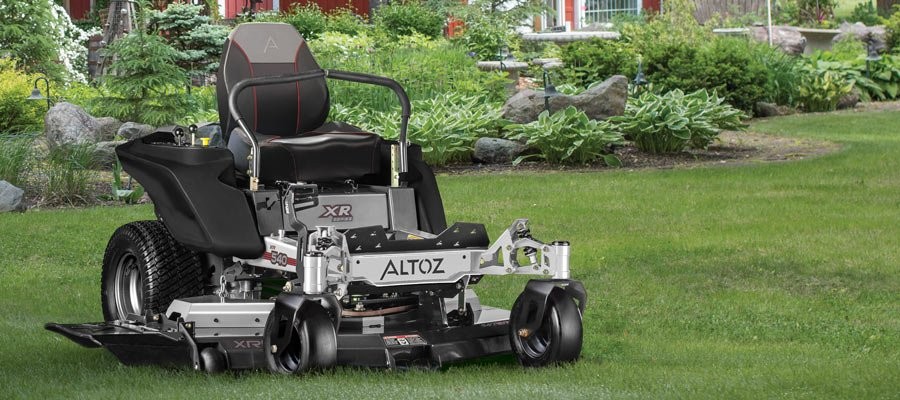

Altoz XR Series

Contact us for price

Stock status: Call Store for Availability

The Altoz XR brings the power and precision of commercial mowers to you. This is simply the hardest working residential zero turn mower for those who need a mower that delivers all the results, with none of the compromises.

Call Us Now

Specs

XR 480 / 540 / 540 SS

Engine

  • Horsepower : 23
  • Manufacturer : Kawasaki
  • Model : FR
  • Displacement (cc) : 726
  • Cylinders : 2
  • Air Filter : Single Stage
  • Fuel : Gasoline
  • Fuel Vol (gal) : 5

Drive Line

  • Trans Type : Hydrostatic
  • Trans Manufacturer : Hydro-Gear
  • Trans Model : ZT-3100
  • Max Forward Speed : 8 mph
  • Front Tire Size : 13″
  • Rear Tire Size : 20″

Features

  • Seat Suspension
  • Seat Adjust Fore and Aft
  • Cup Holder
  • Fuel Gauge
  • Digital Hour Meter

Dimension / Weight

  • Length : 80″
  • Width (Chute Up) : 49″
  • Height (ROPS Up) : 49″
  • Weight : 800 lbs / 820 lbs / 830 lbs

Cutting Deck

  • Cutting Width : 48″ / 54″ / 54″
  • Deck Type : Fabricated Steel
  • Deck Thickness : Laminated 10 and 10 Gauge
  • Deck Depth : 4.5″
  • Cut Height (Min – Max) : 1.5″ – 4.25″
  • Cutting Height Steps : 1/4″ Increments
  • Number of Blades : 3
  • Blade Speed : 18,500 fpm
  • Anti-Scalp Wheels : 4 Recessed
  • Deck Lifting System : Foot Pedal
  • Clutch Torque : 125 ft-lbs
  • Clutch Mfr : Warner

Warranty

  • Homeowner / Commercial : 3 year/400 hour – first 12 months no hour limitation
  • Rental : N/A
