Specs

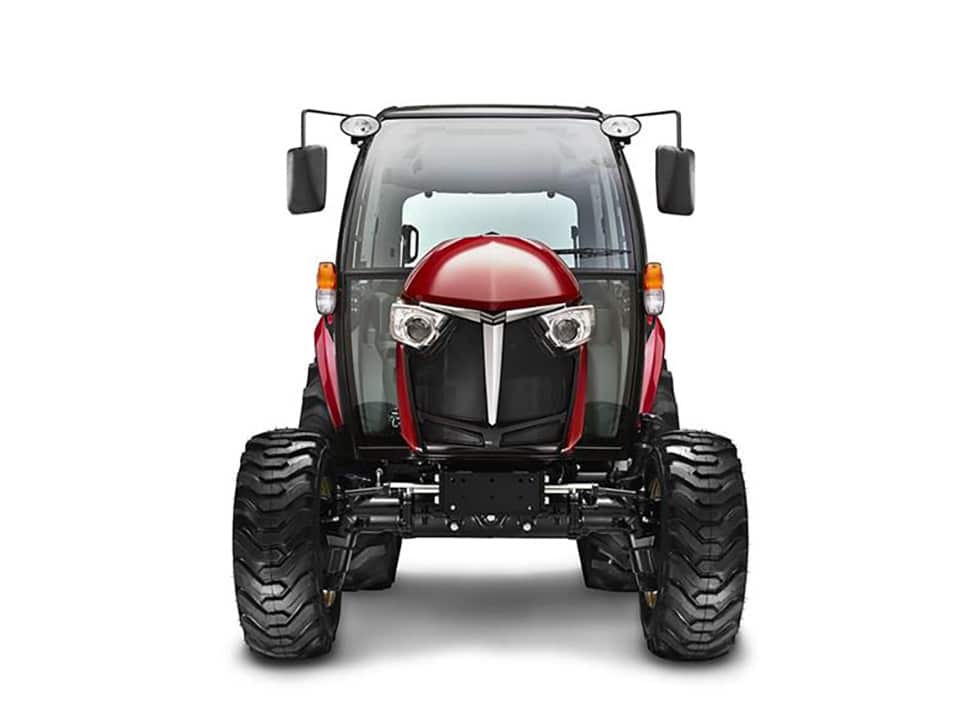

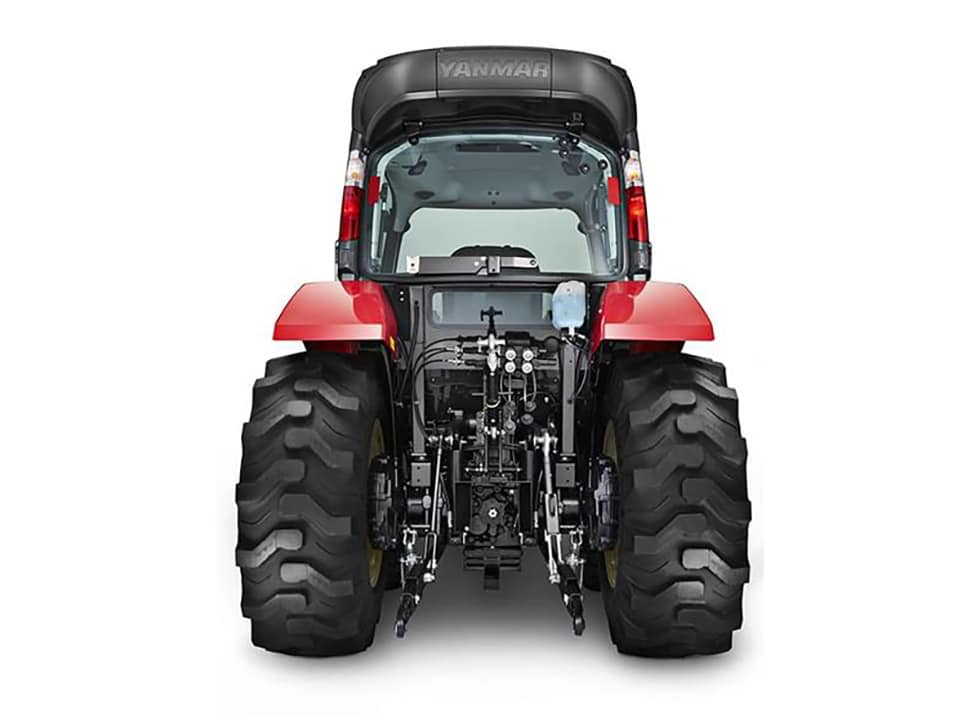

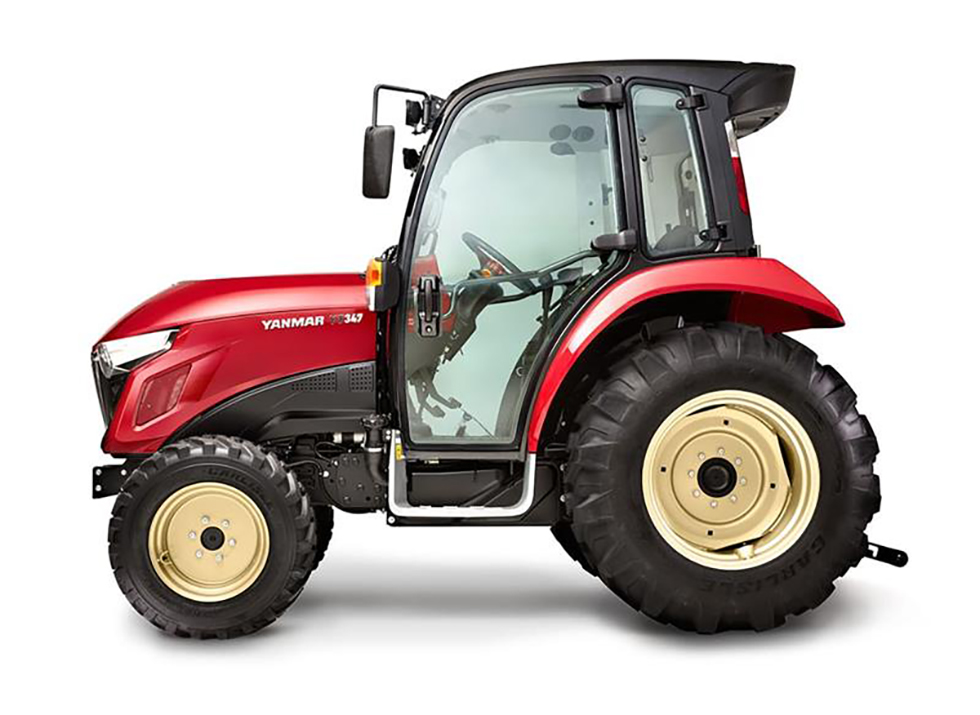

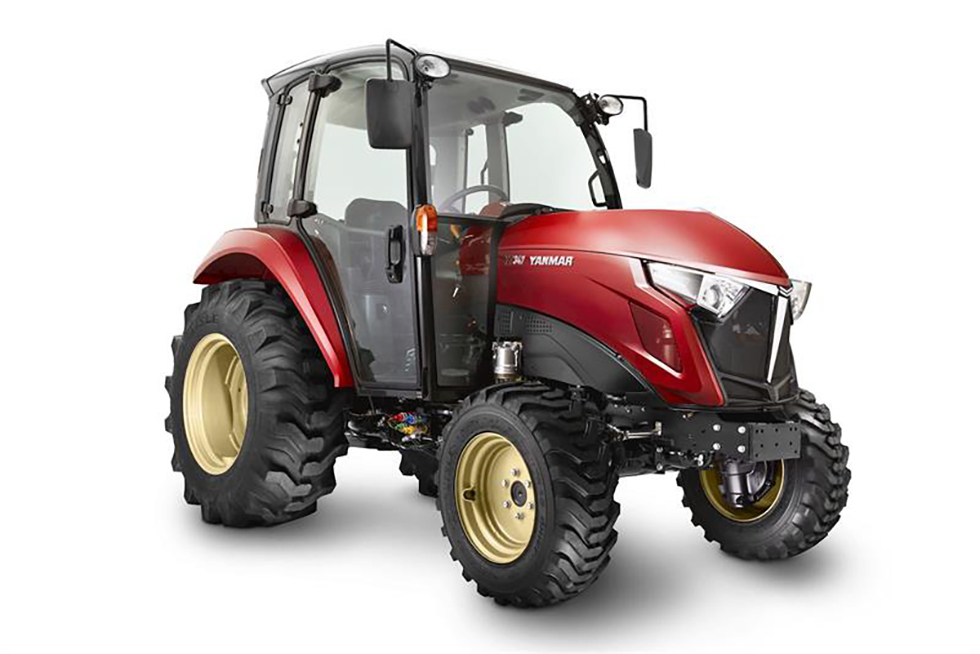

| Model | YT347C | Font Awesome fontawesome.com --> Add to compare | Font Awesome fontawesome.com --> Add to compare | Font Awesome fontawesome.com --> Add to compare |
|---|---|---|---|---|
| Gross Power: EPA Regulation HP (kW) | 46 HP (34.3 kW)* | |||
| Overall length (with 3PH and R4 Tires) | 130.9” (3,325 mm) | |||
| Overall Width (with R4 Tires) | 70.6” (1,793 mm) | |||
| Overall Height (with Roll-Over Protection, and R4 tires) | 95.7” (2,431 mm) | |||
| Transmission | I-HMT(Integrated Hydro Mechanical Transmission) | |||
| Drive Type | 2WD/4WD selectable engagement | |||
| Lift Capacity (Pivot Pin) lb. (kg) | 2,500 lbs. (1,134 kg) | |||
| Bucket Width in. (mm) | 72” (1,829 mm) | |||
| PTO Power HP (kW) | 39.5 HP (29.1 kW) | |||
| Rear PTO Speed/Engine RPM | 540 RPM | |||
| Mid PTO Speed/Engine RPM | ||||
| Wheel Base | 75.9” (1,927 mm) | |||
| Front Tires (with R4) | 10” - 16.5” | |||
| Rear Tires (with R4) | 17.5” L - 24” | |||
| 3-Point Hitch | Category 1 |
