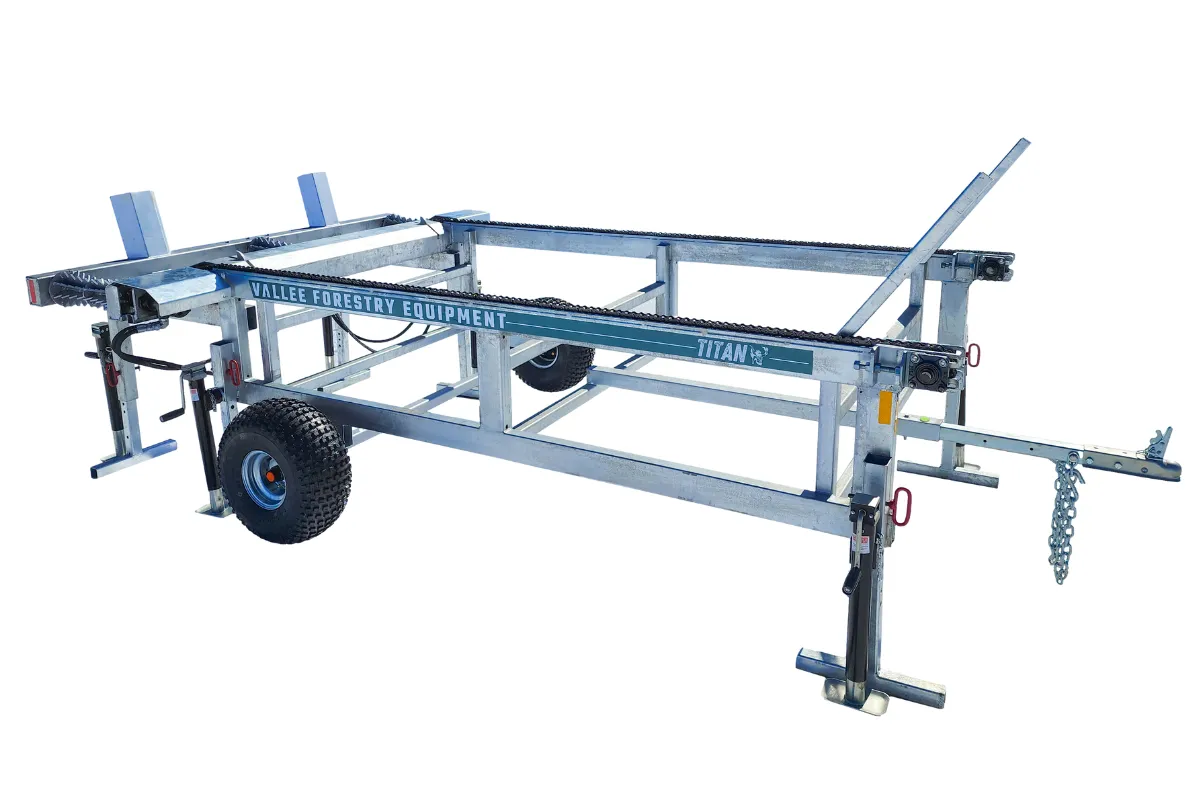

Vallee Forestry Equipment TITAN Hydraulic Infeed Log Table

Contact us for price

Stock status: Call Store for Availability

Main features

  • The hydraulic loading table built strong for heavy logs and intensive use
  • Fully welded frame for maximum strength
  • Hot dipped galvanized for increased durability
  • Equipped with a mobile unit for easy movement
  • Controlled directly from the levers of your firewood processor

***USA*** In accordance with American laws on the regulation of road vehicles, this equipment cannot be driven on streets or highways without being secured on a compliant trailer.

Call Us Now

Specs

Frame

  • Steel grade 44W and 50W
  • Weight 1,000 lbs (without galvanization)
  • Max capacity with legs in stationary mode : 13,000 lbs

Mobile unit

  • Axle capacity with wheel : 2,000 lbs @ 25 km/h
  • 2 inch tow bar with safety chains
  • Offroad usage only

Rollers & chain conveyor

  • Maximum weight to drive the chain conveyor : 4,200 lbs
  • Maximum weight to drive the rollers conveyor : 4,000 lbs

Dimensions

  • Width of 87 inches
  • Overall length of 184 inches
  • Height of 40 inches
