Specs

Engine

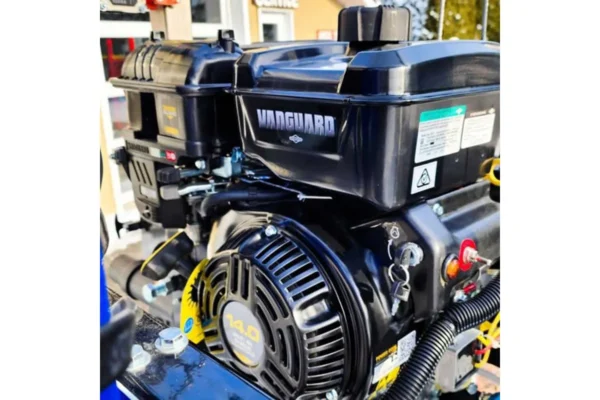

• 14 HP Vanguard engine (by Briggs & Stratton)
• 408cc, gasoline, air cooled, 4 stroke, one cylinder
• Electric starter
• Cyclonic Air Filtration
• 3-year warranty by the manufacturer

Saw head

• Capacity of 30’’ in diameter
• Maximum board width of 24’’
• Last board cutting capacity ⅞” thick

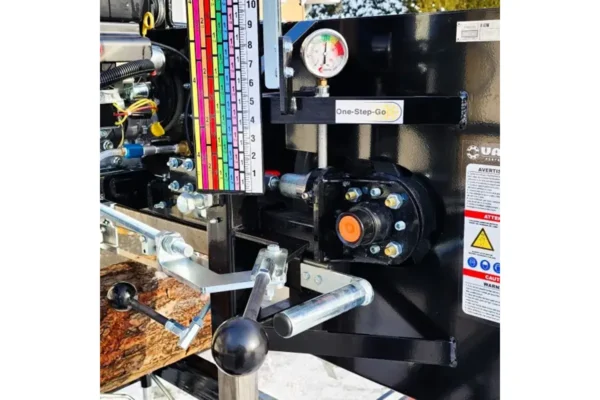

• Cam lock with pressure gauge blade tensioner
• One piece solid front panel for easy access blade maintenance
• Electric saw head height adjustment with automatic locking system

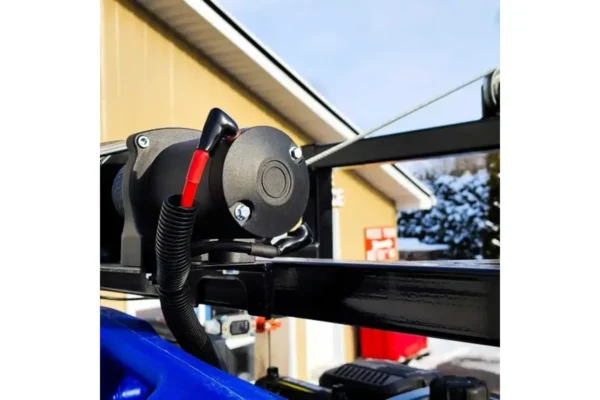

• High-quality 4000 lb electric winch

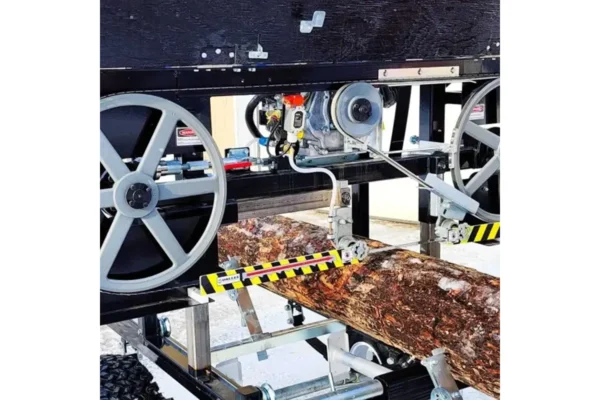

• High grade double bearing blade-guide

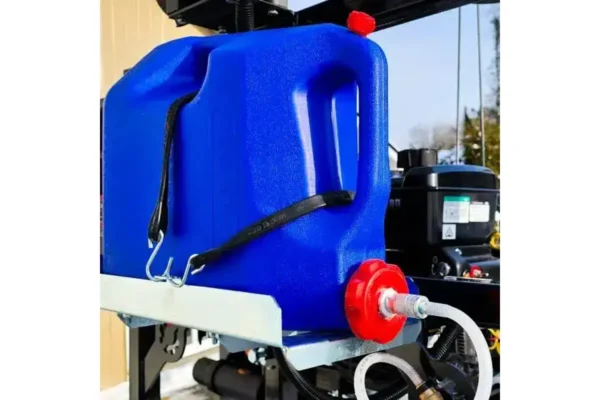

• Large 7 gallons (26 liters) removable lubrification tank
• Heavy-Duty saw head frame made of welded 2’’x2’’ solid steel tubing
• Large colored lumber scale, details from ¾’’ up to 4’’
• Automatic blade lubricant system
• Automatic blade brake system
• Automatic engine throttle and saw blade engagement
• Blade size of 157 ½’’ x 1 ¼’’  (1 blade included)
• MXV-890 Drive Belt
• B56 Flywheel Belt
• Hydraulic blade tensioner available in option

Frame

• Capacity of 17’ maximum board length, onto a 19 ½’ frame
• Solid steel tubing frame 2” x 4” x ⅛” completely welded (no joints)

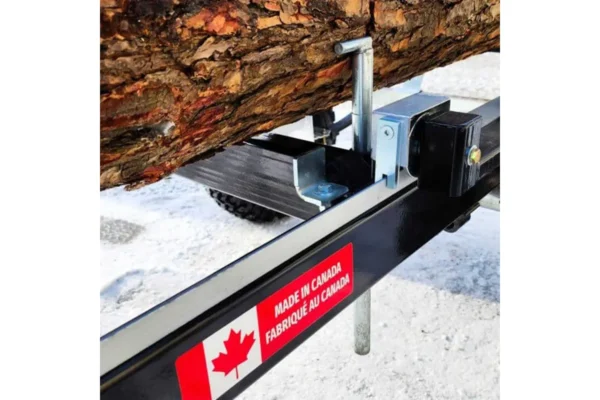

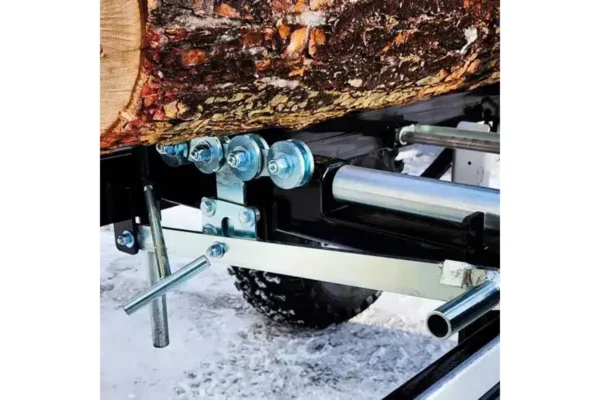

• 2 log clamps
• 2 levelers equipped with casters for easy log rotation

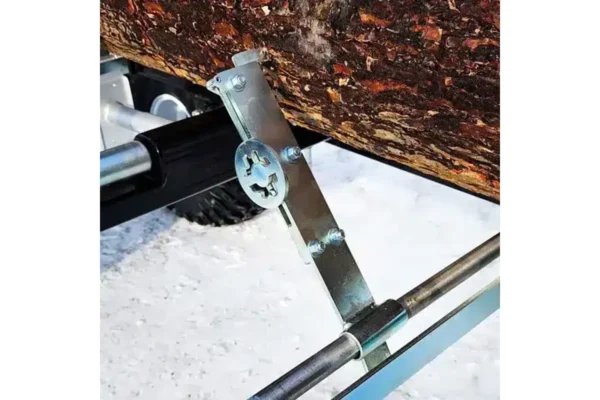

• 3 stopper posts
• Adjustable jacks and stabilizing legs for optimal leveling
• A storage platform for tools

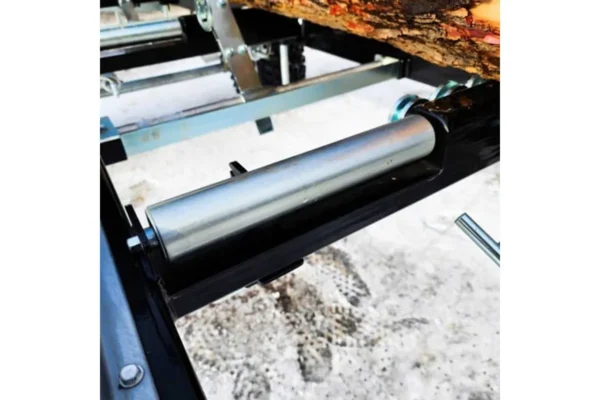

• Frame rollers to facilitate the movement of logs and boards available in option

Towing equipment (off road only)

• Single axle off road trailer kit

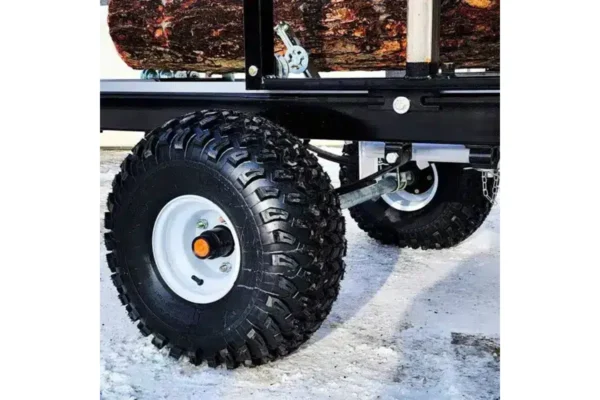

• All-terrain wheels and tires (optional high-speed wheels available)
• 2000 lb. suspension and axle
• 2-inch drawbar and 3500-lb. safety chain
