Specs
Specifications
engine
- Honda GX630 gas engine (20 HP)
- Electric start
- 3-years warranty
Specifications
engine

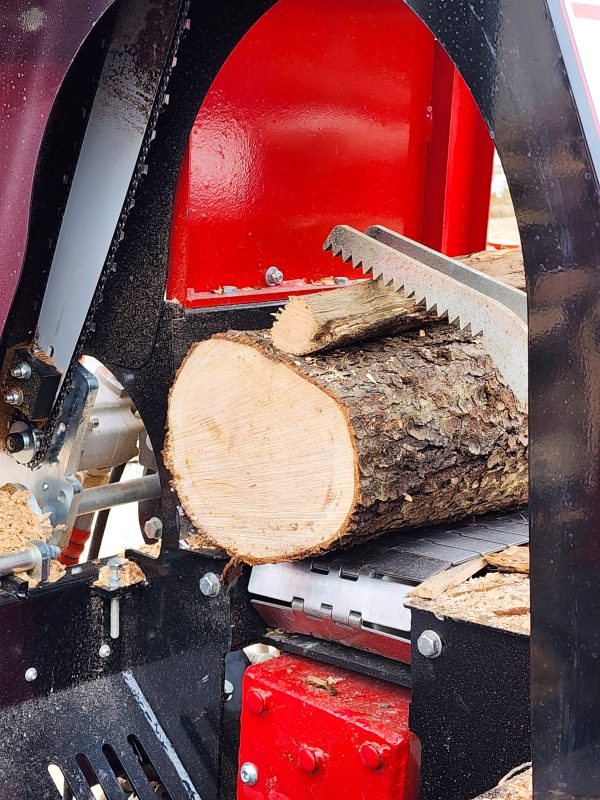

saw section
- 20-inch saw bar and chain (18-inch cutting capacity)
- Hydraulically actionned saw
- Automatic chain lubrication system
- Openable saw cover for easy access and maintenance of the saw and chain
- Hydraulic saw motor of superior quality allowing a powerful cutting speed at 6000 rpm
- Saw cover safety switch. If the cover is open, the saw stops immediately
- Includes an easy-to-read ruler to measure the desired lengths of cuts from the last log, possible to cut logs between 10 and 22 inches
- Hydraulic log clamp

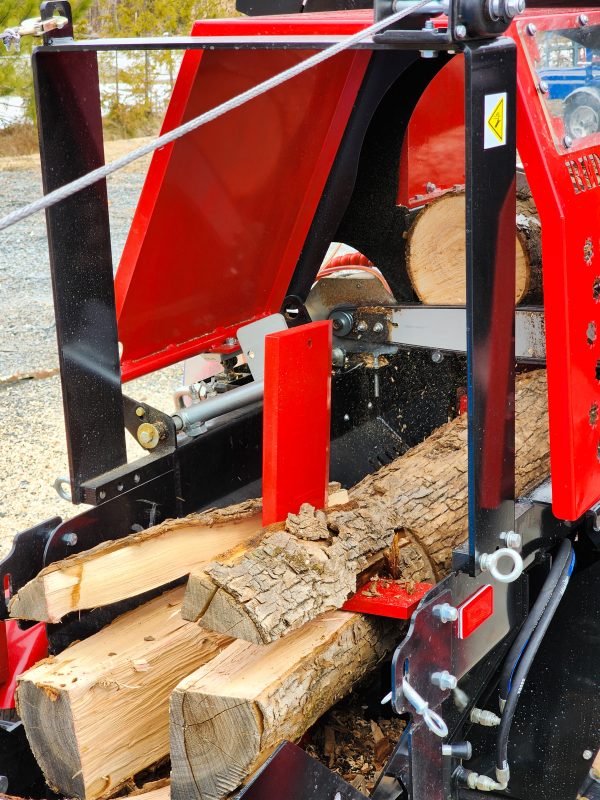

splitting Section
- Hydraulic splitting blade adjustment
- 4-way splitting blade included (6-way available in option)
- Splitting power of 27 tons nominal
- Quick return of the splitter's cylinder
- Adjustable oil flow system
- Oversized screen oil filter, easy to clean and environmentally friendly, allowing high precision filtration
- Filter indicator, it will tell you when it's time to clean it
- Larger cap for the hydraulic oil tank, screwed, ventilated and better placed to facilitate filling
- Easy and very safe splitting clutch. It is as easy to initiate as it is to stop. In addition, it stops automatically when the saw cover is opened

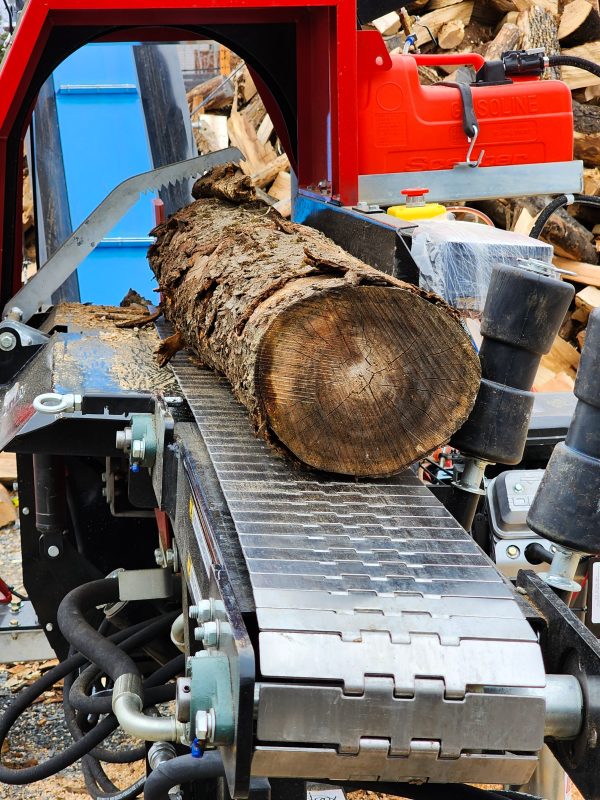

Infeed conveyor section
- High strength steel inlet conveyor
- Maximum length of 10 feet long logs at the input, can be increased to 16 feet with the addition of a feeding table in option
- Allows you to advance your logs up to the saw, without any effort
Exit conveyor section
- 30 degrees swiveling conveyor
- Conveyor length of 10.5 feet, foldable for easy transportation and storage
- 10-inch wide premium quality conveyor belt with steel covered conveyor cleats

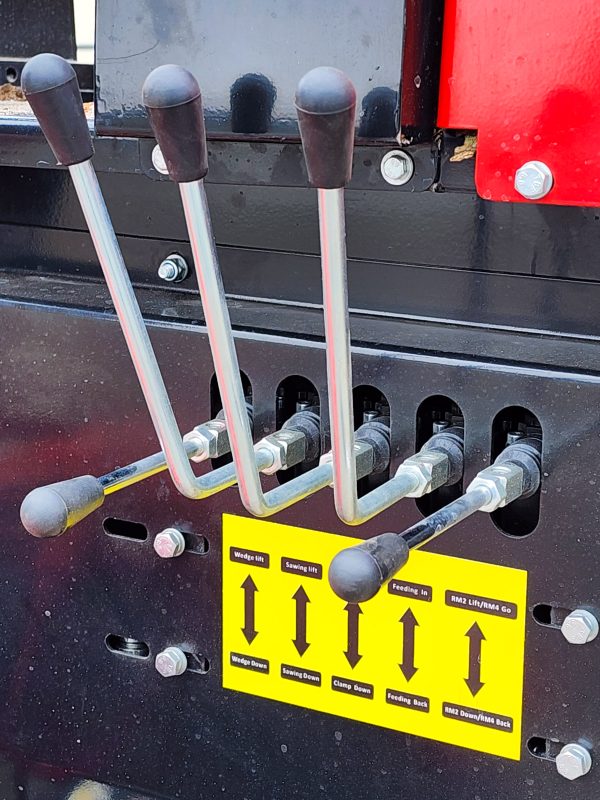

- Conveyor hydraulic control valve for greater safety and easier winter start-up
- 1200 lb winch for conveyor height adjustment
- Heavy-Duty winch rope
Towing equipment
(Not permitted on U.S. roads)
- 2 inch towing drawbar
- 3500-lb safety chains
- High quality TorFlex suspension
- High-speed tires on alloy wheels
- Aluminum fenders
SPECIALLY FOR YOU
- Reinforced hydraulic system to prevent overheating of hydraulic oil
- 1 adjustable jack with a swivel wheel to increase the stability and movement of your firewood processor
- Hydraulic power output double valve
- Emergency stop button
- Hour meter to easily follow your maintenance schedule
- Toolbox
