The Little Blue is a great option for sawyers who want all the benefits of a high-quality portable sawmill without breaking the bank. Having all the great capabilities of most commercial-grade bandsaw mills, the Little Blue is small and mighty!
This Canadian-made sawmill’s 30-inch diameter capacity makes it ideal for turning logs into boards, planks, and beams. The Little Blue is great for a variety of applications as it is fully customizable to your needs. From frame sizes to engine’s power, you can build your very own Little Blue adding as many options as desired.
The Little Blue includes many features of bigger Vallee portable sawmills models. It comes with electric adjustable height, levelers, log clamps and a heavy-duty powder-coated tubular steel frame, making it very durable. This sawmill is also equipped with a powerful Honda engine that allows it to do the job quickly and hassle-free. Every Vallee portable sawmill is designed to be both efficient and easy to use. Our portable sawmills are incredibly easy to set up, transport and use. Our Vallee’s exclusive One-Step-Go technology allows to activate the engine, blade and lubricant as well as brake removal in a single motion.
All of our Vallee portable sawmills are delivered pre-assembled and ready to use right out of the factory. They are designed to make the process of sawing logs into lumber a simple and easy task. The sawmill comes with everything you need to start sawing; all you have to do is add the wood!
SPECIFICATIONS
Engine

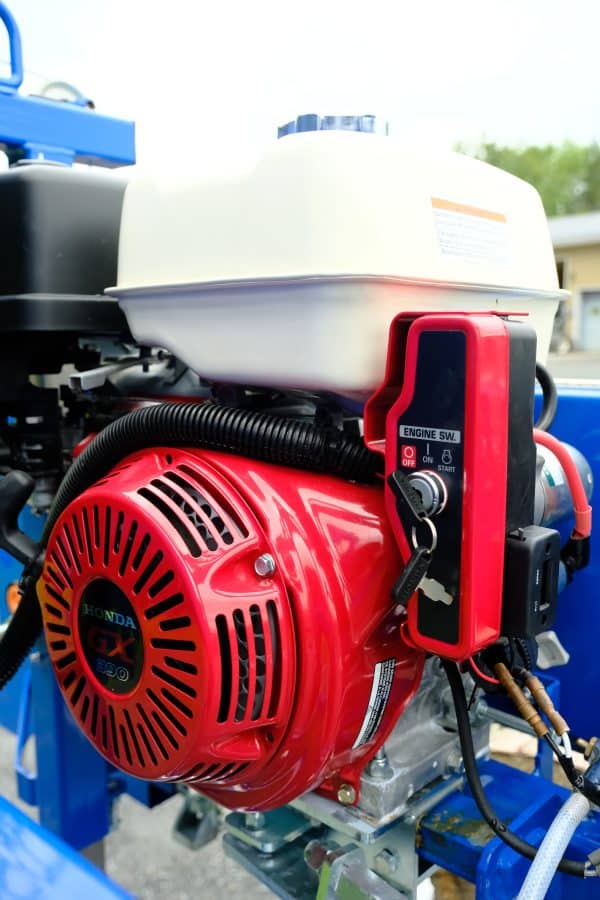

- 13 HP Honda GX390 or 20 HP Honda GX630
- Electric start with 18 amps/200Watts
- Gasoline, air cooled, 4 stroke, one cylinder, OHC
- 3 years Warranty by Honda
SPECIFICATIONS
Engine
- 13 HP Honda GX390 or 20 HP Honda GX630
- Electric start with 18 amps/200Watts
- Gasoline, air cooled, 4 stroke, one cylinder, OHC
- 3 years Warranty by Honda
Saw head
- Maximum Diameter of log, 30 inches
- Maximum width of board, 21 inches
- 7/8 inch last board cut capability
- Blade of 157’ ½ x 1 1/4 APEX RF (1 blade included)
- Electric saw head positioning, with auto-lock 4000 lb high quality electric winch
- Simple cam lock blade tensioning for fast and easy adjustment
- Single, one piece solid front panel, for easy access blade maintenance

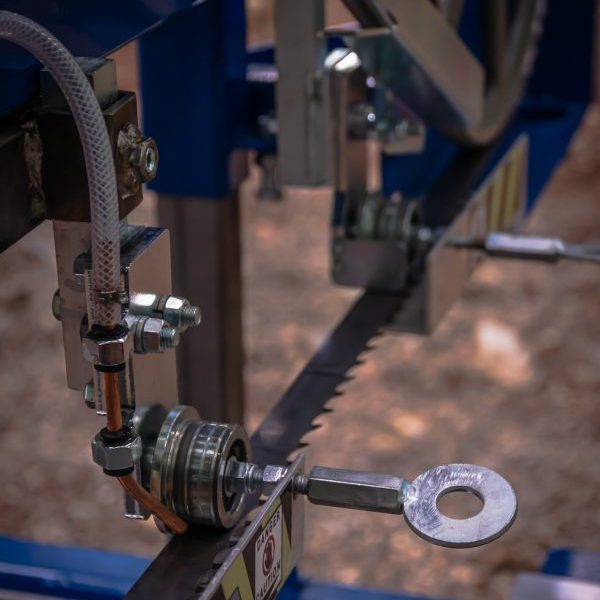

- High grade double bearing blade-guide, zinc design and adapted for heavy usage with a 18 inch wheel
- MXV-890 Drive Belt
- B56 Flywheel Belt
- Large 7 gallons (26 liters) removable lubrification tank
- Super-Duty head frame construction, completely made of 2''x 2’’ solid welds

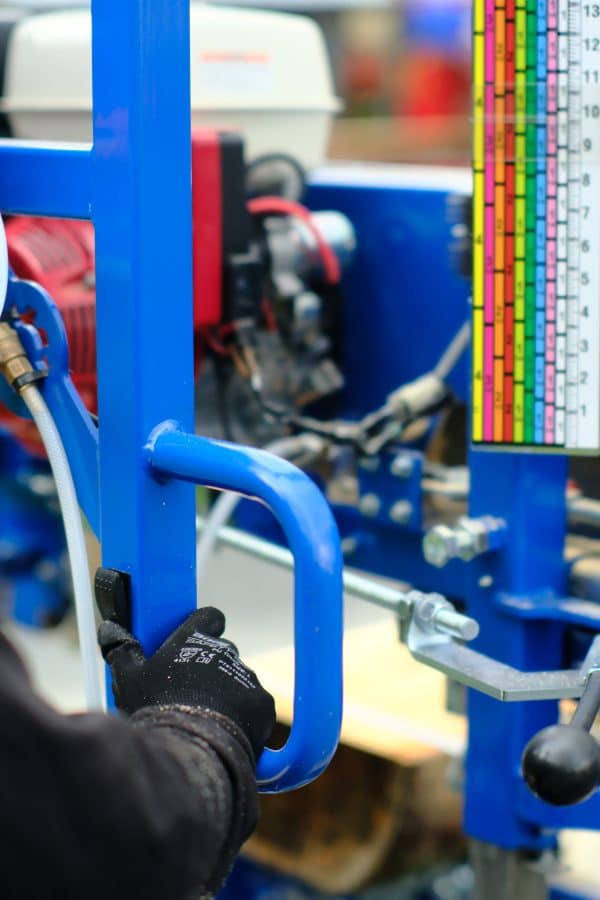

- Large colored graduated ruler, details from ¾ up to 4 Inches,
- Hydraulic blade tensionner available in option - contact your dealer for more information
- Auto-blade lube system automatically turns on and off fluid flow during operation
- Automatic blade-brake system , maximize speed and the lifespan of your blades
- Automatic engine throttle and saw blade engagement.
Base
- Up to 21 feet maximum board length, onto a 24 feet bed
- Solid steel tubing frame completely welded with cross members (no joints, no bolts)
- 6 adjustable jacks (2x4 frames)
- 4 adjustable jacks and 5 stabilizing legs for maximum stability (2x6 frames)
- 2 log clamps, simple one hand cam-lock design
- 2 integrated levelers with casters, allow to compensate the taper of a log and rotate it without effort
Optional towing equipment
(Not permitted on U.S. roads)
- Galvanized wheels (2x4 frames) and alloy wheels (2x6 frames)
- 2000 lb suspension axels, high quality tires and wheel fenders
- Drawbar with 2 inches trailer tongue and 3500 lb security chain
- Integrated brake lights and turn signals
ONE-STEP-GO SYSTEM EXCLUSIVE TO VALLEE PORTABLE SAWMILLS
Activates the engine, blade and lubricant, and removes the brake in a single movement.
ONE-STEP-GO SYSTEM EXCLUSIVE TO VALLEE PORTABLE SAWMILLS
Activates the engine, blade and lubricant, and removes the brake in a single movement.
