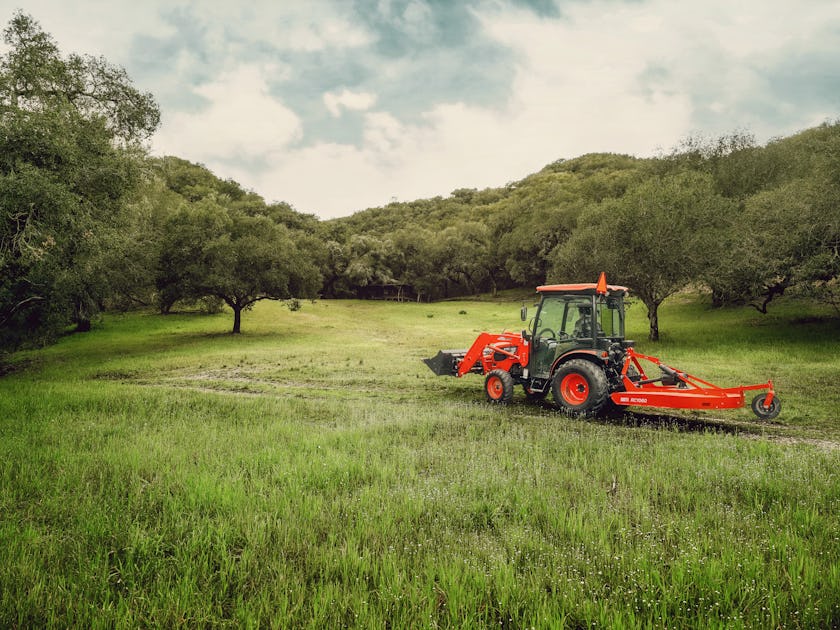

KIOTI CK4020SEH Cab

Contact us for price

Stock status: Call Store for Availability

SE models offer additional comfort and convenience features: auto manual PTO, telescoping rear hitch, rear hydraulic remotes, tilt steering, premium seat, and rubber floor mat.

These Machines are built to complete the job.

The whisper-quiet, eco-friendly KIOTI Tier 4 CRDI engine improves fuel efficiency while reducing noise levels. Letting you conquer every task with quiet confidence.

Hydrostatic transmission for effortless control, twin pedals for intuitive forward and reverse movements, seamlessly adjusting speed without ever touching a clutch.

The single lever joystick redefines front-loader operation. With a flick of your wrist, you command every movement, from raising the boom to lowering the bucket. A float position allows the bucket free flotation over the ground surface.

Allows you to raise and lower your implements with the slide of a lever with minimal effort yet maximum precision. Handily located lever eliminates the need for climbing and contorting, to attach or detach an implement.

The impressive 13.4″ ground clearance lets you glide over rocks and uneven ground to conquer any terrain with confidence.

The deluxe factory-installed full size cab with air conditioning and heat lets operators perform tasks comfortably in any weather condition.

Read for yourself what others are saying about their KIOTI.

Everything you need to get anything done.

You’re this close to owning your very own KIOTI.

From parts and service to warranty and financing information, we’re here to help.

Get genuine KIOTI parts and dependable service at your local authorized KIOTI dealer.

Need warranty info on a KIOTI you already own? Or on one you’re about to buy? It’s all right here.

From great rates to cash back offers and more, we want to sell you a KIOTI just as bad as you want to buy one.

Call Us Now

Specs

Engine 8

Model
3H-TM4B

Engine Manufacturer
KIOTI

Power
39.60 hp (29.50 kW)

Displacement
111.40 cu. in. (1,826 cc)

RPM
2,600 rpm

Fuel Type
Diesel

Aspiration
Intercular

Fuel Capacity
9 gal (34 L)

Transmission 8

Transmission
Hydrostatic

Shuttle
Hydrostatic

Travel Speeds Forward
3

Travel Speeds Reverse
3

Travel Speeds Minimum Speed
0 mph (0 km/h)

Travel Speeds Maximum Speed
14.88 mph (23.94 km/h)

Travel Speeds Min Reverse Speed
0 mph (0 km/h)

Travel Speeds Max Reverse Speed
10.41 mph (16.76 km/h)

PTO 4

PTO Type
Independent

PTO Power
30.90 hp (23 kW)

Rear Speed
540

Mid Speed
2,000 (Optional)

Drive Train 3

Brakes
Wet Disc Type

Clutch
None

Steering
Hydrostatic Power Steering

Hydraulics 3

Pump
Gear

Pump Capacity
11.30 gpm (42.90 lpm)

Lift Capacity
1,631 lb (740 kg)

Hitch 4

Type
Three Point

Category
Category 1

Control Type
Position

Lift Capacity
1,500 lb (680 kg)

dimensions 9

Width
54.50 in (1,385 mm)

Wheelbase
65.70 in (1,670 mm)

Ground Clearance
13.40 in (340 mm)

Front Tread
48.20 in (1,225 mm)

Rear Tread
47.60 in (1,210 mm)

Turning Radius
8.96 ft (2.73 m)

Weight
3,397 lb (1,325 kg)

Length with Hitch
120.90 in (3,070 mm)

Height
92.52 in (2,350 mm)
