Specs
Specifications
engine

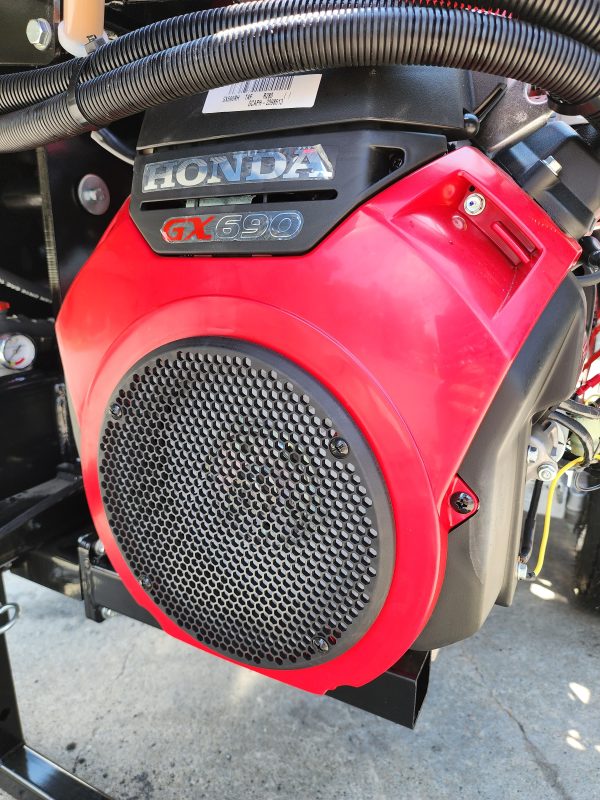

- 22 HP Honda GX690 (3-year warranty by Honda)
- Electric starter
- Gasoline, air cooled, 4 stroke, one cylinder
saw section

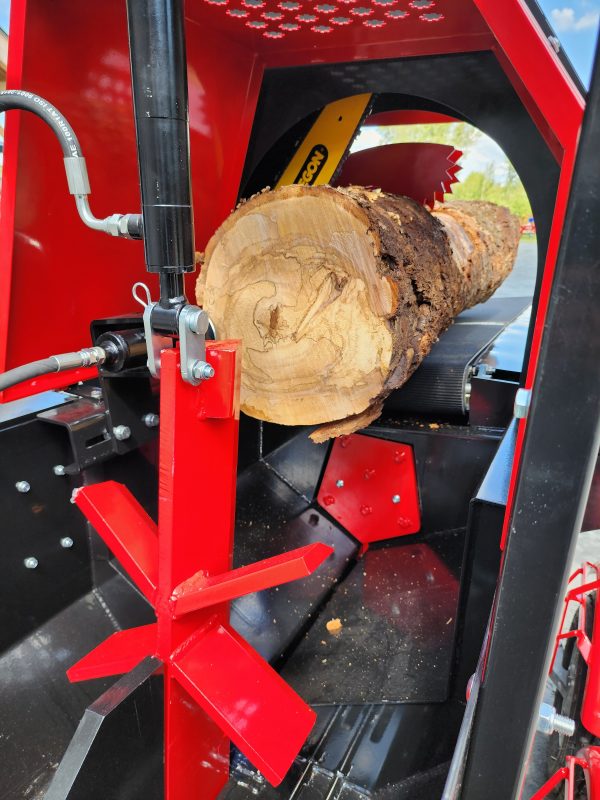

- 24’’ hydraulically actionned Oregon Harvester sawbar offering a 20’’ cutting capacity
- Automatic chain lubrication system
- Hydraulic saw motor of superior quality allowing a powerful cutting speed at 6000 rpm
- Openable saw cover for easy access and maintenance of the saw and chain
- Saw cover safety switch. If the cover is open, the saw stops immediately
- Includes an easy-to-read ruler to measure the desired lengths of cuts of the log, possible to cut logs between 10 and 22 inches
splitting Section
- Easy and very safe splitting clutch. It is as easy to initiate as it is to stop. In addition, it stops automatically when the saw cover is opened
- Splitting power of 30 nominal tons
- Quick return of the splitter's cylinder

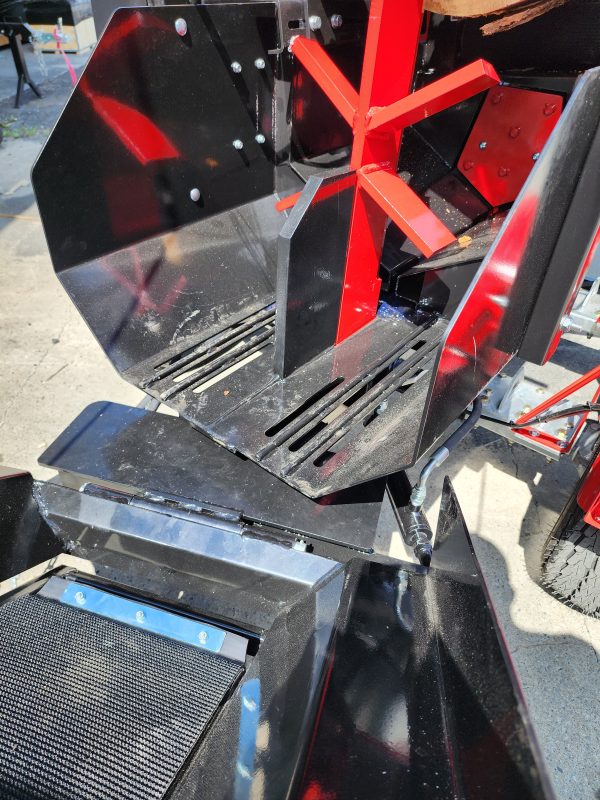

- 6-way splitting blade included
- Adjustable oil flow system
- Oversized screen oil filter, easy to clean and environmentally friendly, allowing high precision filtration
- Filter indicator, it will tell you when it's time to clean it
- Larger cap for the hydraulic oil tank, screwed, ventilated and better placed to facilitate filling
Infeed conveyor section
- Maximum length of 10 feet long logs at the input, can be increased to 16 feet with the addition of a feeding table in option
- Premium quality full length entrance conveyor belt
- Allows you to advance your logs up to the saw, without any effort
Exit conveyor section
- Hydraulically controlled outfeed conveyor that swivels from left to right
- Conveyor length of 10.5 feet, foldable for easy transportation and storage
- 11.5-inch wide superior quality conveyor belt with steel covered conveyor cleats
- Conveyor hydraulic control valve for greater safety and easier winter start-up
- 1200 lb winch for conveyor height adjustment
- Heavy-Duty winch rope
towing section
- 2 inch towing drawbar
- 3500-lb safety chains

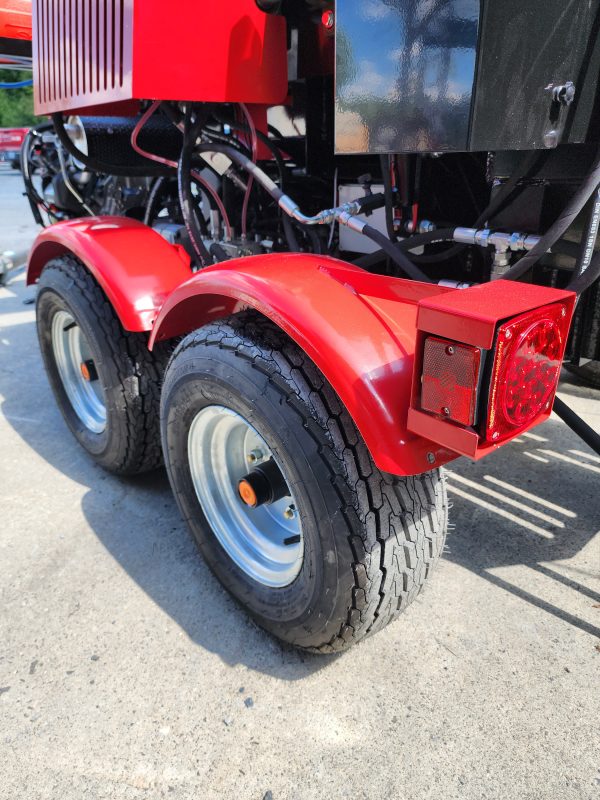

- High quality Torflex suspension, wheel fenders with LED signals, 10" wheels with high speed tires
SPECIALLY FOR YOU
- Reinforced hydraulic system to prevent overheating of hydraulic oil
- 1 adjustable jack to increase the stability of your firewood processor
- Hydraulic power output double valve

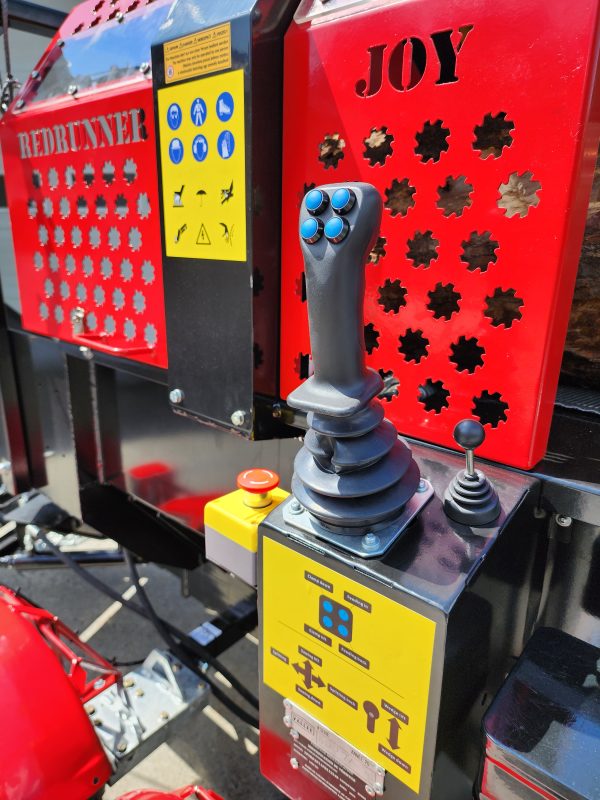

- Emergency stop button
- Hour meter to easily follow your maintenance schedule
- Toolbox
