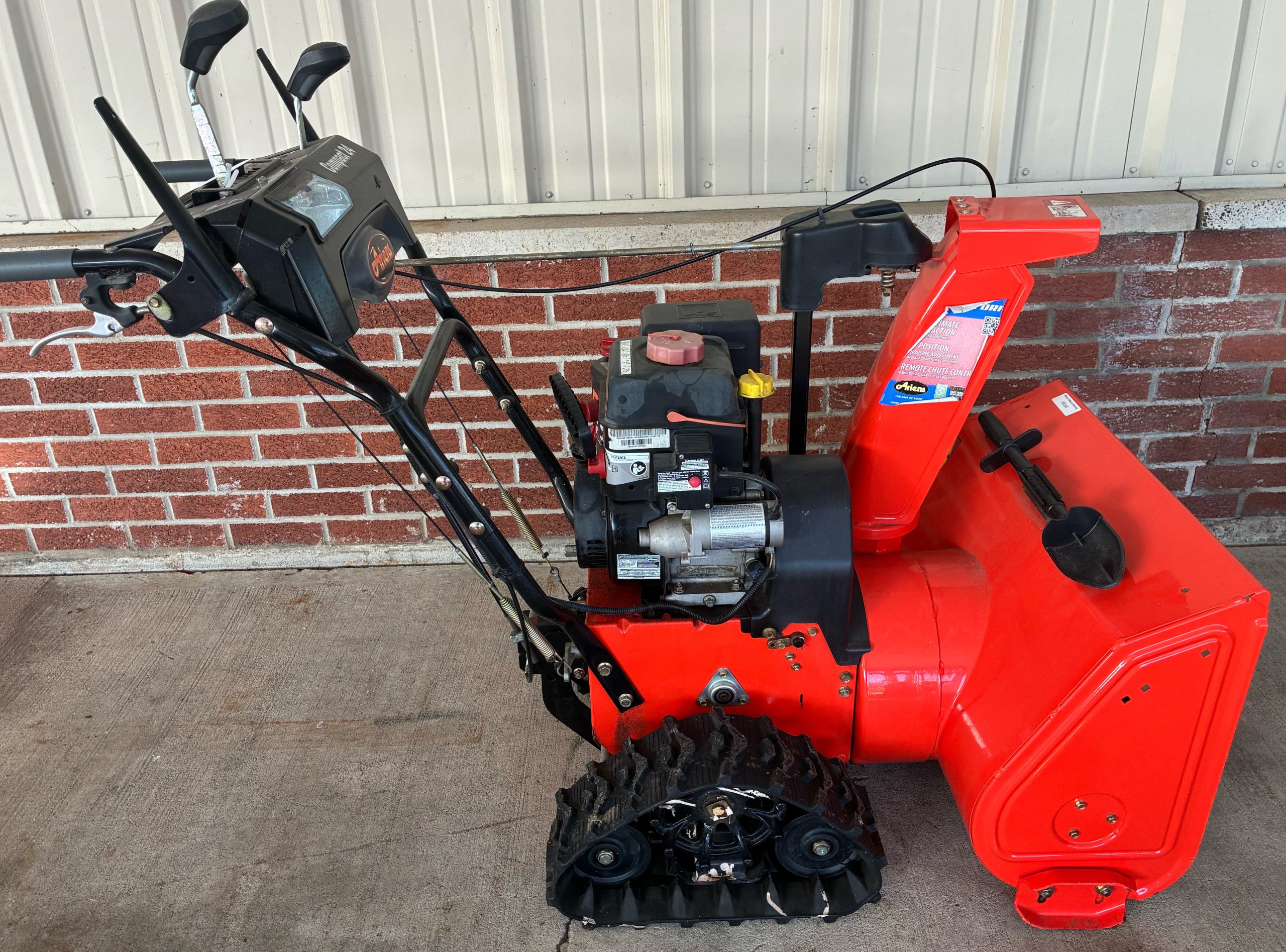

Ariens Snow Blower (920022)

📌 General Specs

• Model: Ariens 920022 (Compact Series 24 Track)

• Type: Two-stage snow blower (auger + impeller)

• Clearing Width: ~24 in (61 cm)

• Intake Height: ~20 in (51 cm)

• Throwing Distance: Up to ~40 ft (12 m)

• Weight (approx): ~218 lbs (99 kg)

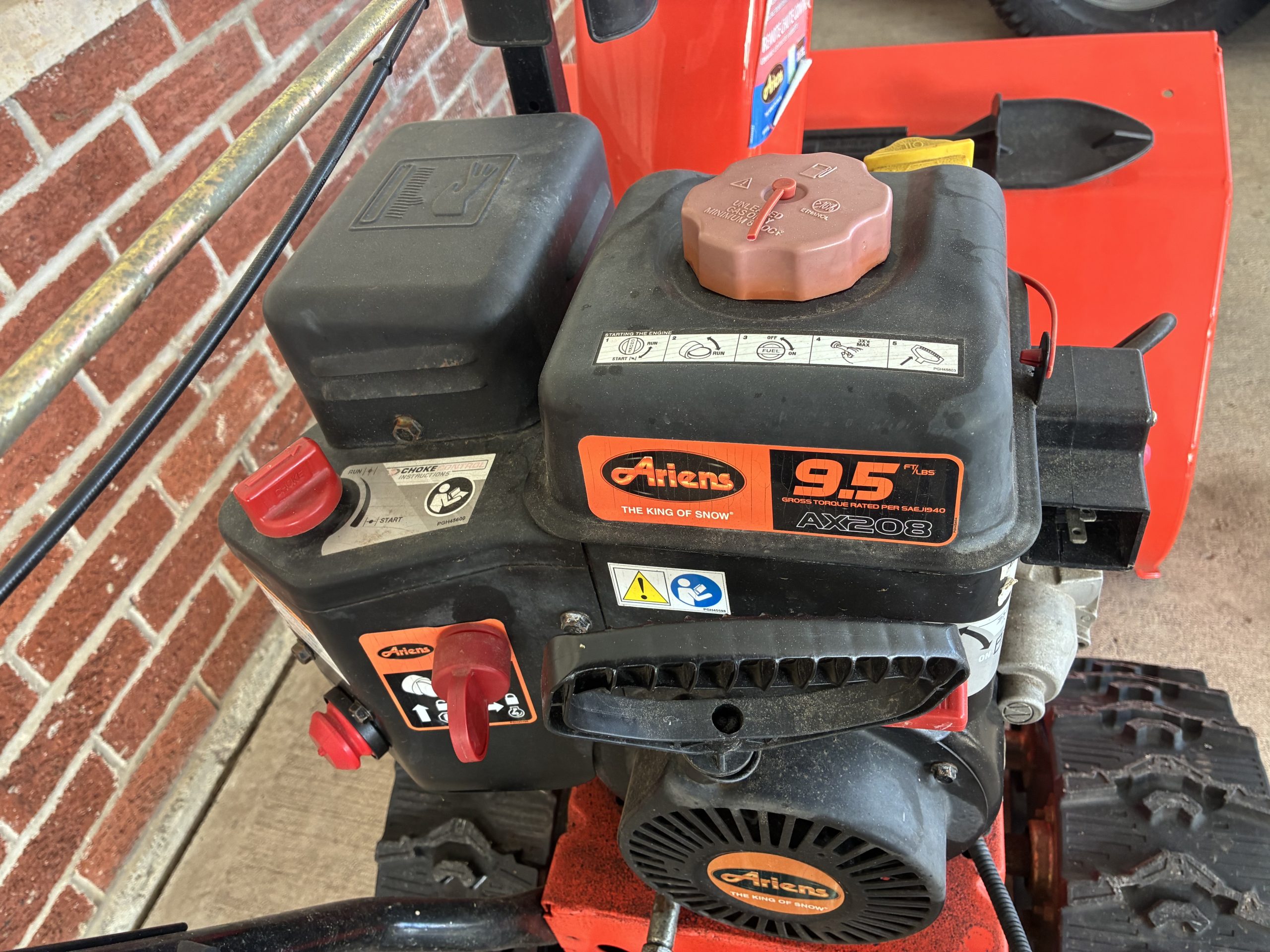

🔧 Engine

• Engine Brand: Ariens AX (4-cycle OHV)

• Displacement: ~208 cc

• Rated Torque: ~9.5 lb-ft (~12.9 Nm)

• Horsepower (approx): ~6.5 hp

• Starting System: 120 V electric start with recoil backup

• Fuel Tank Capacity: ~0.8 gal (3.0 qt / ~2.7 L)

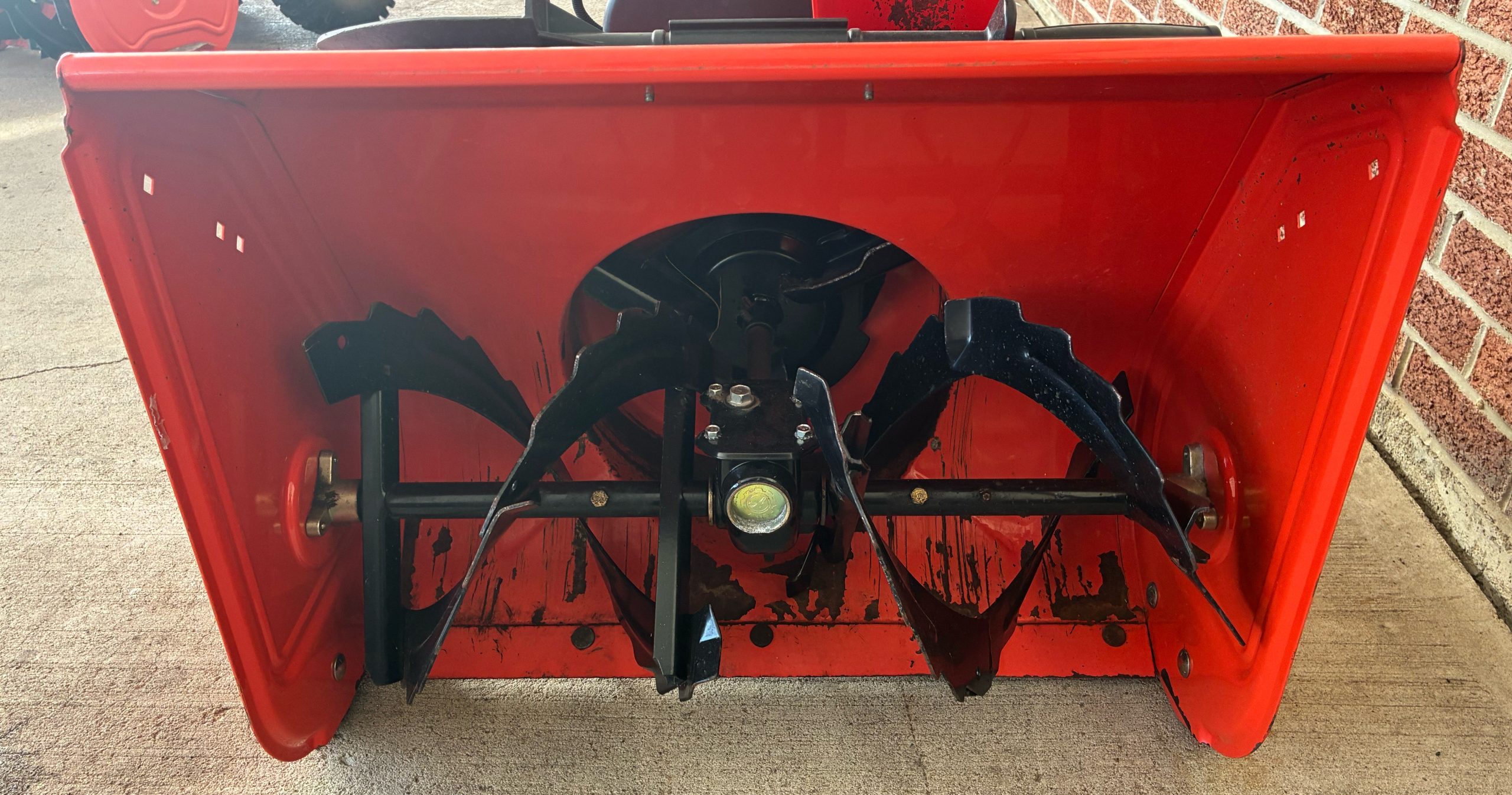

❄️ Auger & Impeller

• Auger Diameter: ~11 in (28 cm) serrated steel

• Impeller Diameter: ~12 in (31 cm) steel 3-blade

• Impeller Speed: ~1190 RPM

🚜 Drive System

• Drive: Disc-O-Matic ® drive system with cast iron gear case

• Speeds: 6 forward / 2 reverse

• Traction: 5.5″ wide directional snow track instead of wheels (better traction on slick or uneven surfaces)

☃️ Chute & Controls

• Chute Rotation: ~200° – 205° (2.5x crank)

• Deflector Control: Remote chute deflector control at dashboard

• Interlocking Controls: Yes (allows one-hand operation for chute while driving)
